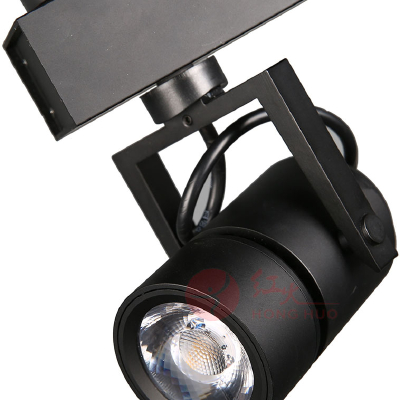

(Model)：HPM-MSTS01-20W-COB
(Power)：10W
(LED Light Source):COB CertaFlux SLM
(Color Temperature)：3000k/4000k
(Voltage)：50/60Hz
(Power factor)：>0.9
(Luminous Flux(lm)：2000lm±5%
(Color Render Index)：≥83
(Beam Angle)：

15W：15°/25°/38°

20W：15°/25°/38°

(Lifespan)：>30000h
(Certificate)：CE,ROHS
(IP Rating)：IP20
(Product Size):

15w：φ105*60mm ：H190mm

20w：φ125*70mm ：H216mm

Product Features

15W：15°/25°/38°

20W：15°/25°/38°

Using imported from Epistar COB light source.
Install way:Embedded,spring bracket fixed.
High color rendering index，rich colors and strong reduction applicable to high-end business
lighting places.
Beam angle:

15W：15°/25°/38°

20W：15°/25°/38°(selectable)

pass CE ROHS.


Material and process

Lamp body:Using extrusion aluminum anodic oxidation treatment,makes better heat dissipation effect.
Adopt USA import original source.with high brightness.low light decline.big current allowance,and
quality assurance.

Applications

Commodity demonstration,commercial lighting(car show，pearl show,fashion show),star hotel,eliteclub,museum,shopping center,the branded show window,decoration wall,wall,wash lighting,moo
